RKLS G2 Series
Linear Magnetic Module Retrofit Kit
The Aleo RKLS Series Magnetic Module Retrofit Kit is the ultimate retrofit kit for energy-savings in myriad of commercial applications. The RKLS offers extreme versatility and flexibility with the ability to be fit inside various existing linear luminaires. The magnetic design allows for easy and convenient installation. Removeable lens allows for increased light output for fixtures with existing lens. Field Adjustable lumen output increases flexibility. Easy replacement and maintenance with external driver.
APPLICATION
Retrofit of commercial, retail, education, hospitality, corporate. Ideal upgrade for prismatic troffers, parabolic troffers, strips/channels, wraparounds, vapor tights.
FEATURES AND BENEFITS
- Quick and Easy Installation
- Field Adjustable CCT/Wattage
- Visually pleasing, architectural design
- Continuous dimming for further demand reduction
- Compatible with advanced sensor/control integration
- Long life, reduced maintenance
- 7-year limited warranty
- ETL Listed
Construction
Precision extruded aluminum heat sink with integral LED and magnetic mounting. Seamless design with metal end and optical lens.
Electrical
External LED Driver for easy driver and module replacement. Universal voltage: 120V-277V input. 0-10V dimming. 12V Aux power with dim-to-off feature.
Installation & Mounting
Quick and easy installation. Modules are magnetic for fast mounting and alignment. Comes with quick connector for sensor installation. LED driver matches standard ballast mounting pattern.
Controls & Dimming
Continuous dimming (0-10V) comes standard. Can be used with dimmer and sensor controls
Retrofit Contents
(1) LED Driver, (2) Magnetic Modules, Quick Connect, Retrofit Label.
Optical System
Lens delivers balanced, comfortable illuminance. Optimal glare control. For higher efficacy and lumen output, lens is removable.
Certifications
ETL Listed.
Warranty
7-year Limited Warranty. See warranty documentation for more information.
Field-Adjustable CCT / Wattage
Increased versatility and reduced inventory burden. Wattage and Color Temp. can be adjusted in the field by selecting (3) different wattages and (3) different CCTs via switch on driver.

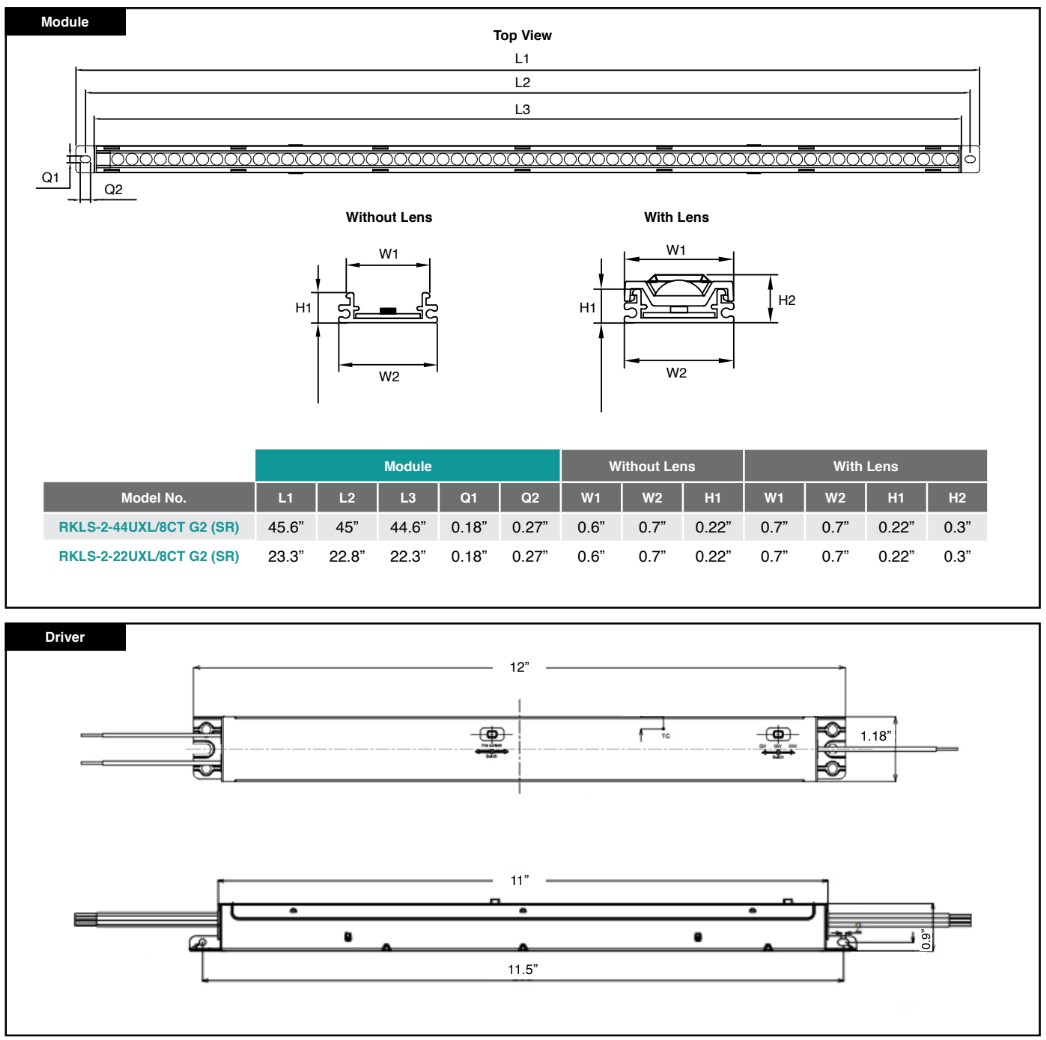

RKLS G2 Line Drawing
Specification Sheet
Installation Guide
IES Files
| Form Factor | Catalog No. | Nominal Wattage | Color Temperature | Lumen (lm) | Wattage (W) | Efficacy (lm/W) |
|---|---|---|---|---|---|---|
| 22″ | RKLS-2-22UXL/8CT G2 (SR) | 12 | ||||
| 3500K | 1,699 | 12.3 | 138.1 | |||
| 4000K | 1,801 | 11.8 | 152.6 | |||
| 5000K | 1,742 | 12.2 | 142.8 | |||
| 15 | ||||||
| 3500K | 2,092 | 15.3 | 136.7 | |||
| 4000K | 2,236 | 14.8 | 151.1 | |||
| 5000K | 2,163 | 15.3 | 141.4 | |||
| 20 | ||||||
| 3500K | 2,762 | 20.4 | 135.4 | |||
| 4000K | 2,947 | 19.7 | 149.6 | |||
| 5000K | 2,856 | 20.4 | 140.0 | |||
| 44″ | RKLS-2-44UXL/8CT G2 (SR) | 24 | ||||
| 3500K | 3,204 | 24.0 | 133.5 | |||
| 4000K | 3,408 | 23.5 | 145.0 | |||
| 5000K | 3,312 | 24.0 | 138.0 | |||
| 30 | ||||||
| 3500K | 3,966 | 30.0 | 132.2 | |||
| 4000K | 4,222 | 29.4 | 143.6 | |||
| 5000K | 4,101 | 30.0 | 136.7 | |||
| 40 | ||||||
| 3500K | 5,223 | 39.9 | 130.9 | |||
| 4000K | 5,574 | 39.2 | 142.2 | |||
| 5000K | 5,398 | 39.9 | 135.3 |
