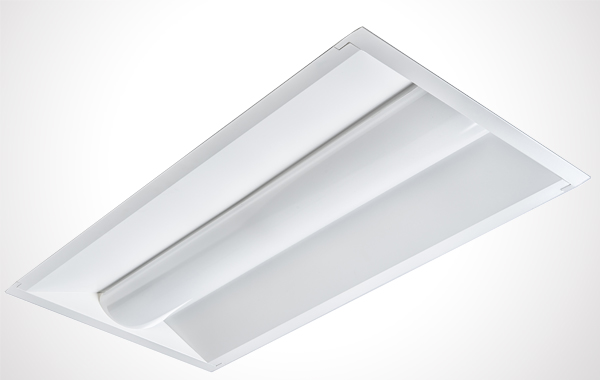

LT-CD UX ECO Series
Volumetric LED Troffer - Field Adjustable
The Aleo LT-CD™ UX Series LED Field Adjustable Troffer delivers industry-leading versatility with deep energy savings and continuous dimming. The luminaire reduces inventory burden and increases flexibility with selectable CCT (3500K, 4000K, 5000K) and 3-different lumen packages per system.
APPLICATION
Provides architectural aesthetics for retail, schools, offices, healthcare, and other various commercial applications.
FEATURES AND BENEFITS
- Reduces Inventory and Increases Flexibility
- Field Adjustable CCT and Lumen Output
- Long life, reduced maintenance
- 7-year Limited warranty
- UL and DLC Premium
Construction
Simple construction with minimal parts allows for easy handling and installation. Low profile design optimizes shipping, storage, and handling. Luminaire features matte white durable finish. Integral T-Bar clips built into luminaire. Diffuser requires no additional frame or fastener for easy installation.
Optical System
Reflector systems features highly reflective coating and delivers balanced, comfortable illuminance for productive spaces. Diffuser lens reduces glare and improves occupant comfort while maintaining high efficiency emission.
Certifications
UL Listed. All components have UL certification. UL Class 2. Driver: SCP, OTP, OVP protection, FCC Part 15 Class B, UL8750 Class 2. DLC Premium QPL
Controls & Dimming
Continuous dimming (0-10V) comes standard. Suitable for use with dimmers, sensors, daylight harvesting and other control strategies to achieve deeper energy-savings and code compliance.
Warranty
7-year Limited Warranty. See warranty documentation for more information.
Electrical
Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features continuous dimming. Universal voltage (120-277V) for convenient installation. Comes equipped with luminaire quick-disconnect.
Field-Adjustable CCT / Wattage
Increased versatility and reduced inventory burden. Wattage and Color Temp. can be adjusted in the field by selecting (3) different wattages and (3) different CCTs via switch on driver box.
Installation & Mounting
Installs in most standard T-Bar ceiling grid systems. Flange kit available for hard-lid/drywall appplications. Surface-mount kit accessory available.
2X2 Line Drawing
2X4 Line Drawing
Specification Sheet
Installation Guide
IES Files
| Form Factor | Model No. | Nom. Wattage | 3500K Lumens | 4000K Lumens | 5000K Lumens |
|---|---|---|---|---|---|
| 2’x2′ | LT-CD-22-UXL-30/8CT G4 ECO | 30W | 3750 | 3780 | 3810 |
| 25W | 3250 | 3275 | 3300 | ||
| 20W | 2640 | 2660 | 2680 | ||
| 2’x4′ | LT-CD-24-UXL-34/8CT G4 ECO | 34W | 4284 | 4318 | 4352 |
| 30W | 3900 | 3930 | 3960 | ||
| 25W | 3350 | 3375 | 3400 |
| Model No. | Description |
|---|---|
| -EM700 | Emergency battery backup, 700 lm |
| -EM1400 | Emergency battery backup, 1400 lm |
